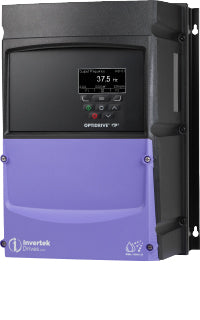

ODP-2-46300-3H04A-MN OptiDrive™ P2, Performance

ODP-2-46300-3H04A-MN OptiDrive™ P2, Performance

ODP-2-46300-3H04A-MN

$3,599.90 USD
$3,599.90 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 41.2 A
Supply Fuse or MCB (Type B) 50 A

Output Ratings

Motor Output Rating 22 kW (30 HP)
Output Voltage 0 – Supply Voltage
Output Current 34 A

Cable Information

Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor Internal
Enclosure IP66 Non Switched Outdoor
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 4
Height 360 mm (14.17 in)
Width 240 mm (9.45 in)
Depth 261 mm (10.28 in)
Weight 9.5 kg (20.94 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 325 mm (12.8 in)
Width 295 mm (11.61 in)
Depth 425 mm (16.73 in)
Weight 11.5 kg (25.35 lbs)
