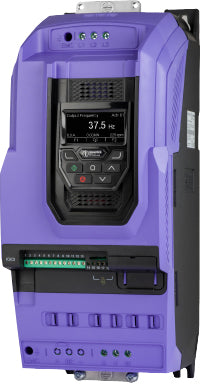

ODP-2-46250-3H042-MN OptiDrive™ P2, Performance

ODP-2-46250-3H042-MN OptiDrive™ P2, Performance

ODP-2-46250-3H042-MN

$2,824.80 USD
$2,824.80 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 34 A
Supply Fuse or MCB (Type B) 40 A

Output Ratings

Motor Output Rating 18.5 kW (25 HP)
Output Voltage 0 – Supply Voltage
Output Current 28 A

Cable Information

Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 4
Height 418 mm (16.46 in)
Width 172 mm (6.77 in)
Depth 240 mm (9.45 in)
Weight 9.2 kg (20.28 lbs)
Fixings 4 x M8

Packaged Dimensions

Height 340 mm (13.39 in)
Width 280 mm (11.02 in)
Depth 560 mm (22.05 in)
Weight 11.2 kg (24.69 lbs)
