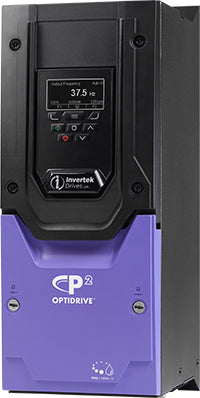

ODP-2-46200-3H04N-MN OptiDrive™ P2, Performance

ODP-2-46200-3H04N-MN OptiDrive™ P2, Performance

ODP-2-46200-3H04N-MN

$2,849.09 USD
$2,849.09 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 26 A
Supply Fuse or MCB (Type B) 32 A

Output Ratings

Motor Output Rating 15 kW (20 HP)
Output Voltage 0 – Supply Voltage
Output Current 22 A

Cable Information

Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor Internal
Enclosure IP55
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 4
Height 450 mm (17.72 in)
Width 171 mm (6.73 in)
Depth 252 mm (9.92 in)
Weight 11.5 kg (25.35 lbs)
Fixings 4 x M8

Packaged Dimensions

Height 510 mm (20.08 in)
Width 240 mm (9.45 in)
Depth 330 mm (12.99 in)
Weight 13.5 kg (29.76 lbs)
