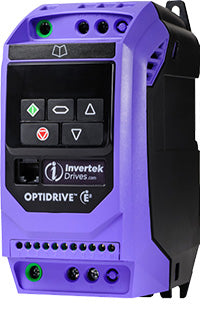

Replacement for Eaton DC1-322D3NN-A20CE1 | Invertek ODE-3-120023-3012

Replacement for Eaton DC1-322D3NN-A20CE1 | Invertek ODE-3-120023-3012

PTS-ODE-3-120023-3012

$285.12 USD
$285.12 USD
Sale Sold out
Shipping calculated at checkout.
  • This drive serves as a drop-in replacement for the Eaton DC1-322D3NN-A20CE1. It is manufactured by Invertek Drives,the original design manufacturer of the DC1 platform that was privately labeled and sold by Eaton
  • Electrical ratings, control capabilities, and form factor are equivalent, allowing this unit to serve as a drop-in replacement in many existing applications.
  • As with any replacement drive, purchasers are responsible for verifying compatibility with their specific equipment, wiring, and application requirements prior to installation.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 3.4 A
Supply Fuse or MCB (Type B) 6 A

Output Ratings

Motor Output Rating 0.37 kW (0.5 HP)
Output Voltage 0 – Supply Voltage
Output Current 2.3 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC Filter
Brake Transistor No Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 1
Height 173 mm (6.81 in)
Width 83 mm (3.27 in)
Depth 123 mm (4.84 in)
Weight 1 kg (2.2 lbs)
Fixings 4 x M5

Packaged Dimensions

Height 165 mm (6.5 in)
Width 125 mm (4.92 in)
Depth 235 mm (9.25 in)
Weight 1.2 kg (2.65 lbs)
