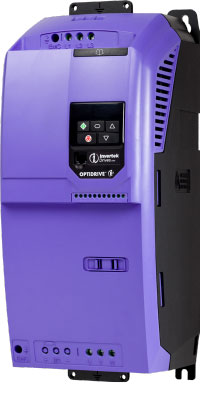

Replacement for Eaton DC1-32030FB-A20CE1 | Invertek ODE-3-420300-3F42

Replacement for Eaton DC1-32030FB-A20CE1 | Invertek ODE-3-420300-3F42

PTS-ODE-3-420300-3F42

$1,172.16 USD
$1,172.16 USD
Sale Sold out
Shipping calculated at checkout.
  • This drive serves as a drop-in replacement for the Eaton DC1-32030FB-A20CE1. It is manufactured by Invertek Drives,the original design manufacturer of the DC1 platform that was privately labeled and sold by Eaton
  • Electrical ratings, control capabilities, and form factor are equivalent, allowing this unit to serve as a drop-in replacement in many existing applications.
  • As with any replacement drive, purchasers are responsible for verifying compatibility with their specific equipment, wiring, and application requirements prior to installation.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 33.3 A
Supply Fuse or MCB (Type B) 40 A

Output Ratings

Motor Output Rating 7.5 kW (10 HP)
Output Voltage 0 – Supply Voltage
Output Current 30 A

Cable Information

Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC Filter
Brake Transistor Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 4
Height 420 mm (16.54 in)
Width 171 mm (6.73 in)
Depth 212 mm (8.35 in)
Weight 9.1 kg (20.06 lbs)
Fixings 4 x M8

Packaged Dimensions

Height 340 mm (13.39 in)
Width 282 mm (11.1 in)
Depth 560 mm (22.05 in)
Weight 10.5 kg (23.15 lbs)
