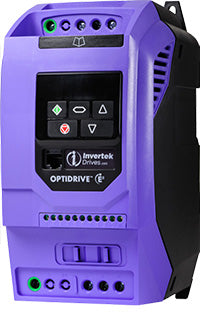

Replacement for Eaton DC1-127D0FB-A20CE1 | Invertek ODE-3-220070-1F42

Replacement for Eaton DC1-127D0FB-A20CE1 | Invertek ODE-3-220070-1F42

PTS-ODE-3-220070-1F42

$419.76 USD
$419.76 USD
Sale Sold out
Shipping calculated at checkout.
  • This drive serves as a drop-in replacement for the Eaton DC1-127D0FB-A20CE1. It is manufactured by Invertek Drives,the original design manufacturer of the DC1 platform that was privately labeled and sold by Eaton
  • Electrical ratings, control capabilities, and form factor are equivalent, allowing this unit to serve as a drop-in replacement in many existing applications.
  • As with any replacement drive, purchasers are responsible for verifying compatibility with their specific equipment, wiring, and application requirements prior to installation.

Input Ratings

Supply Voltage 200-240 V
Input Phases 1
Supply Current Continuous 12.9 A
Supply Fuse or MCB (Type B) 16 A

Output Ratings

Motor Output Rating 1.5 kW (2 HP)
Output Voltage 0 – Supply Voltage
Output Current 7 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC Filter
Brake Transistor Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 2
Height 221 mm (8.7 in)
Width 110 mm (4.33 in)
Depth 150 mm (5.91 in)
Weight 1.7 kg (3.75 lbs)
Fixings 4 x M5

Packaged Dimensions

Height 234 mm (9.21 in)
Width 144 mm (5.67 in)
Depth 260 mm (10.24 in)
Weight 1.9 kg (4.19 lbs)
