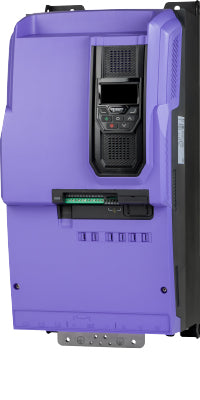

ODV-3-621100-3F12-MN OptiDrive™ Eco

ODV-3-621100-3F12-MN OptiDrive™ Eco

ODV-3-621100-3F12-MN

$4,464.24 USD
$4,464.24 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 97.8 A
Supply Fuse or MCB (Type B) 125 A

Output Ratings

Motor Output Rating 30 kW (40 HP)
Output Voltage 0 – Supply Voltage
Output Current 110 A

Cable Information

Max Supply Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 6A
Height 614 mm (24.17 in)
Width 286 mm (11.26 in)
Depth 320 mm (12.6 in)
Weight 32 kg (70.55 lbs)
Fixings -

Packaged Dimensions

Height 380 mm (14.96 in)
Width 375 mm (14.76 in)
Depth 780 mm (30.71 in)
Weight 35 kg (77.16 lbs)
