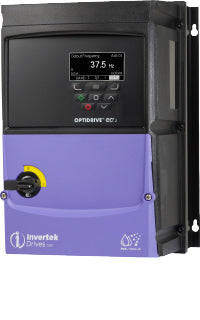

ODV-3-360220-301A-MN OptiDrive™ Eco

ODV-3-360220-301A-MN OptiDrive™ Eco

ODV-3-360220-301A-MN

$2,015.90 USD
$2,015.90 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 25.5 A
Supply Fuse or MCB (Type B) 32 A

Output Ratings

Motor Output Rating 15 kW (20 HP)
Output Voltage 0 – Supply Voltage
Output Current 22 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP66 Non Switched Outdoor
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 3
Height 310 mm (12.2 in)
Width 211 mm (8.31 in)
Depth 225 mm (8.86 in)
Weight 6.6 kg (14.55 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 305 mm (12.01 in)
Width 270 mm (10.63 in)
Depth 440 mm (17.32 in)
Weight 7.6 kg (16.76 lbs)
