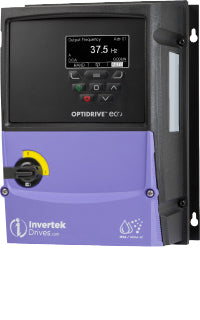

ODV-3-240140-3F1E-MN OptiDrive™ Eco Low Harmonic

ODV-3-240140-3F1E-MN OptiDrive™ Eco Low Harmonic

ODV-3-240140-3F1E-MN

$1,627.30 USD
$1,627.30 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 12.4 A
Supply Fuse or MCB (Type B) 16 A

Output Ratings

Motor Output Rating 5.5 kW (7.5 HP)
Output Voltage 0 – Supply Voltage
Output Current 14 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP66 With Disconnect Outdoor
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 2A
Height 257 mm (10.12 in)
Width 188 mm (7.4 in)
Depth 196 mm (7.72 in)
Weight 3.5 kg (7.72 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 215 mm (8.46 in)
Width 235 mm (9.25 in)
Depth 375 mm (14.76 in)
Weight 4.2 kg (9.26 lbs)
