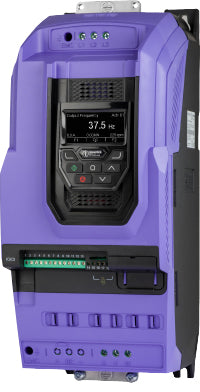

ODP-2-42150-3HF42-MN OptiDrive™ P2, Performance

ODP-2-42150-3HF42-MN OptiDrive™ P2, Performance

ODP-2-42150-3HF42-MN

$2,082.96 USD
$2,082.96 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 55.8 A
Supply Fuse or MCB (Type B) 63 A

Output Ratings

Motor Output Rating 11 kW (15 HP)
Output Voltage 0 – Supply Voltage
Output Current 46 A

Cable Information

Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 4
Height 418 mm (16.46 in)
Width 172 mm (6.77 in)
Depth 240 mm (9.45 in)
Weight 9.2 kg (20.28 lbs)
Fixings 4 x M8

Packaged Dimensions

Height 340 mm (13.39 in)
Width 280 mm (11.02 in)
Depth 560 mm (22.05 in)
Weight 11.2 kg (24.69 lbs)
