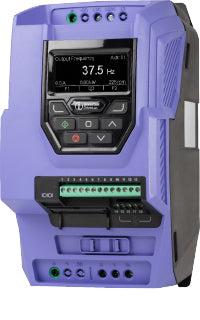

ODP-2-32050-3HF42-MN OptiDrive™ P2, Performance

ODP-2-32050-3HF42-MN OptiDrive™ P2, Performance

ODP-2-32050-3HF42-MN

$1,391.81 USD
$1,391.81 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 21.6 A
Supply Fuse or MCB (Type B) 25 A

Output Ratings

Motor Output Rating 4 kW (5 HP)
Output Voltage 0 – Supply Voltage
Output Current 18 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 3
Height 261 mm (10.28 in)
Width 131 mm (5.16 in)
Depth 205 mm (8.07 in)
Weight 3.5 kg (7.72 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 325 mm (12.8 in)
Width 165 mm (6.5 in)
Depth 260 mm (10.24 in)
Weight 3.7 kg (8.16 lbs)
