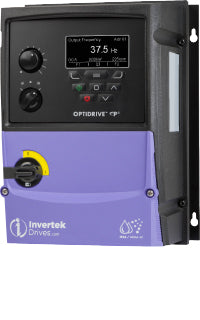

ODP-2-26010-3H04B-MN OptiDrive™ P2, Performance

ODP-2-26010-3H04B-MN OptiDrive™ P2, Performance

ODP-2-26010-3H04B-MN

$986.30 USD
$986.30 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 2.5 A
Supply Fuse or MCB (Type B) 10 A

Output Ratings

Motor Output Rating 0.75 kW (1 HP)
Output Voltage 0 – Supply Voltage
Output Current 2.1 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor Internal
Enclosure IP66 Switched Outdoor
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 2
Height 257 mm (10.12 in)
Width 188 mm (7.4 in)
Depth 172 mm (6.77 in)
Weight 3.5 kg (7.72 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 215 mm (8.46 in)
Width 235 mm (9.25 in)
Depth 375 mm (14.76 in)
Weight 4.2 kg (9.26 lbs)
