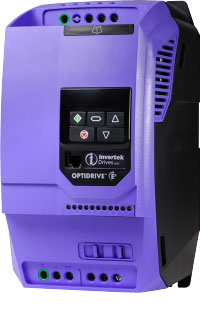

SKU:ODE-3-340140-3F4A-MTP
Regular price
$1,269.84 USD
Regular price
Sale price
$1,269.84 USD
Couldn't load pickup availability
Input Ratings
| Supply Voltage |
380-480 V |
| Input Phases |
3 |
| Supply Current Continuous |
17.2 A |
| Supply Fuse or MCB (Type B) |
25 A |
Output Ratings
| Motor Output Rating |
5.5 kW (7.5 HP) |
| Output Voltage |
0 – Supply Voltage |
| Output Current |
14 A |
Cable Information
| Max Supply Cable Size |
8 mm² (0.01 sq in) |
| Max Motor Cable Size |
8 mm² (0.01 sq in) |
| Max Motor Cable Length |
100 m (328 ft) |
Factory Build Options
| EMC Filter |
Internal EMC Filter |
| Brake Transistor |
Internal Brake Transistor |
| Enclosure |
IP66 Outdoor Non-switched |
| Display |
LED |
Drive Dimensions
| Size |
3 |
| Height |
310 mm (12.2 in) |
| Width |
211 mm (8.31 in) |
| Depth |
225 mm (8.86 in) |
| Weight |
6.6 kg (14.55 lbs) |
| Fixings |
4 x M4 |
Packaged Dimensions
| Height |
305 mm (12.01 in) |
| Width |
270 mm (10.63 in) |
| Depth |
440 mm (17.32 in) |
| Weight |
7.6 kg (16.76 lbs) |
