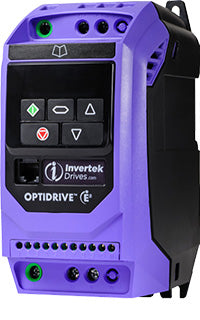

ODE-3-120023-301A OptiDrive™ E3, Economy

ODE-3-120023-301A OptiDrive™ E3, Economy

ODE-3-120023-301A

$385.44 USD
$385.44 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 3.4 A
Supply Fuse or MCB (Type B) 6 A

Output Ratings

Motor Output Rating 0.37 kW (0.5 HP)
Output Voltage 0 – Supply Voltage
Output Current 2.3 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC Filter
Brake Transistor No Internal Brake Transistor
Enclosure IP66 Outdoor Non-switched
Display LED

Drive Dimensions

Size 1
Height 232 mm (9.13 in)
Width 161 mm (6.34 in)
Depth 152 mm (5.98 in)
Weight 2.3 kg (5.07 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 205 mm (8.07 in)
Width 210 mm (8.27 in)
Depth 345 mm (13.58 in)
Weight 2.9 kg (6.39 lbs)
