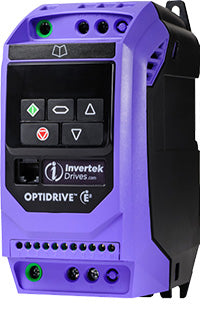

ODE-3-110043-1012 OptiDrive™ E3, Economy

ODE-3-110043-1012 OptiDrive™ E3, Economy

ODE-3-110043-1012

$298.32 USD
$298.32 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 110-115 V
Input Phases 1
Supply Current Continuous 15.8 A
Supply Fuse or MCB (Type B) 25 A

Output Ratings

Motor Output Rating 0.75 kW (1 HP)
Output Voltage 0 – 2 x Supply Voltage
Output Current 4.3 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC Filter
Brake Transistor No Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 1
Height 173 mm (6.81 in)
Width 83 mm (3.27 in)
Depth 123 mm (4.84 in)
Weight 1 kg (2.2 lbs)
Fixings 4 x M5

Packaged Dimensions

Height 165 mm (6.5 in)
Width 125 mm (4.92 in)
Depth 235 mm (9.25 in)
Weight 1.2 kg (2.65 lbs)
