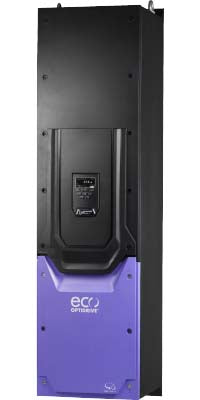

ODV-3-742020-3F1N-MN OptiDrive™ Eco

ODV-3-742020-3F1N-MN OptiDrive™ Eco

ODV-3-742020-3F1N-MN

$10,255.34 USD
$10,255.34 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 205.9 A
Supply Fuse or MCB (Type B) 250 A

Output Ratings

Motor Output Rating 110 kW (175 HP)
Output Voltage 0 – Supply Voltage
Output Current 202 A

Cable Information

Max Supply Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP55
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 7
Height 1280 mm (50.39 in)
Width 330 mm (12.99 in)
Depth 358 mm (14.09 in)
Weight 89 kg (196.21 lbs)
Fixings 4 x M10

Packaged Dimensions

Height 1420 mm (55.91 in)
Width 540 mm (21.26 in)
Depth 560 mm (22.05 in)
Weight 96 kg (211.64 lbs)
