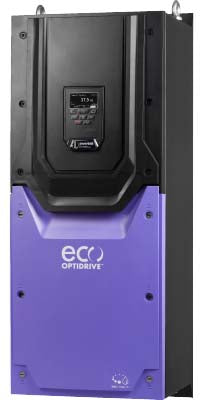

ODV-3-661500-301N-MN OptiDrive™ Eco

ODV-3-661500-301N-MN OptiDrive™ Eco

ODV-3-661500-301N-MN

$9,266.40 USD
$9,266.40 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 160 A
Supply Fuse or MCB (Type B) 200 A

Output Ratings

Motor Output Rating 110 kW (175 HP)
Output Voltage 0 – Supply Voltage
Output Current 150 A

Cable Information

Max Supply Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP55
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 6
Height 865 mm (34.06 in)
Width 330 mm (12.99 in)
Depth 332 mm (13.07 in)
Weight 55 kg (121.25 lbs)
Fixings 4 x M10

Packaged Dimensions

Height 980 mm (38.58 in)
Width 450 mm (17.72 in)
Depth 450 mm (17.72 in)
Weight 58 kg (127.87 lbs)
