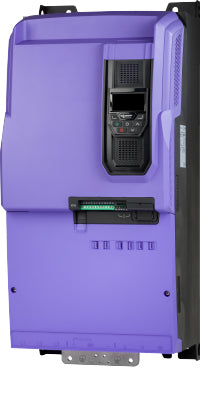

ODV-3-641800-3F12-MN OptiDrive™ Eco

ODV-3-641800-3F12-MN OptiDrive™ Eco

ODV-3-641800-3F12-MN

$7,440.05 USD
$7,440.05 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 167.4 A
Supply Fuse or MCB (Type B) 250 A

Output Ratings

Motor Output Rating 90 kW (150 HP)
Output Voltage 0 – Supply Voltage
Output Current 180 A

Cable Information

Max Supply Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 6B
Height 726 mm (28.58 in)
Width 330 mm (12.99 in)
Depth 320 mm (12.6 in)
Weight 43 kg (94.8 lbs)
Fixings -

Packaged Dimensions

Height 380 mm (14.96 in)
Width 375 mm (14.76 in)
Depth 785 mm (30.91 in)
Weight 46 kg (101.41 lbs)
View full details
