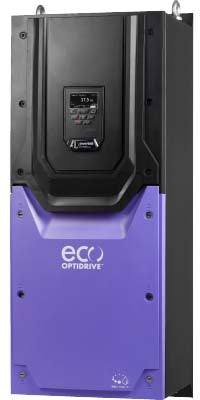

ODV-3-621500-3F1N-MN OptiDrive™ Eco

ODV-3-621500-3F1N-MN OptiDrive™ Eco

ODV-3-621500-3F1N-MN

$6,947.95 USD
$6,947.95 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 134 A
Supply Fuse or MCB (Type B) 200 A

Output Ratings

Motor Output Rating 37 kW (50 HP)
Output Voltage 0 – Supply Voltage
Output Current 150 A

Cable Information

Max Supply Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Size 150 mm² (0.23 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP55
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 6
Height 865 mm (34.06 in)
Width 330 mm (12.99 in)
Depth 332 mm (13.07 in)
Weight 55 kg (121.25 lbs)
Fixings 4 x M10

Packaged Dimensions

Height 980 mm (38.58 in)
Width 450 mm (17.72 in)
Depth 450 mm (17.72 in)
Weight 58 kg (127.87 lbs)
