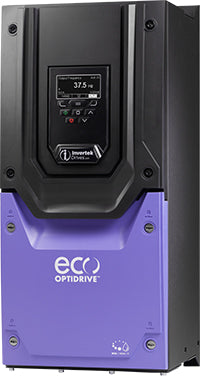

ODV-3-560540-301N-MN OptiDrive™ Eco

ODV-3-560540-301N-MN OptiDrive™ Eco

ODV-3-560540-301N-MN

$3,844.90 USD
$3,844.90 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 62.2 A
Supply Fuse or MCB (Type B) 80 A

Output Ratings

Motor Output Rating 37 kW (50 HP)
Output Voltage 0 – Supply Voltage
Output Current 54 A

Cable Information

Max Supply Cable Size 35 mm² (0.05 sq in)
Max Motor Cable Size 35 mm² (0.05 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP55
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 5
Height 540 mm (21.26 in)
Width 235 mm (9.25 in)
Depth 270 mm (10.63 in)
Weight 23 kg (50.71 lbs)
Fixings 4 x M8

Packaged Dimensions

Height 595 mm (23.43 in)
Width 350 mm (13.78 in)
Depth 375 mm (14.76 in)
Weight 25 kg (55.12 lbs)
