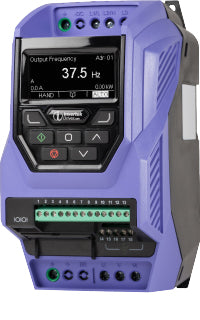

ODV-3-260090-3012-MN OptiDrive™ Eco

ODV-3-260090-3012-MN OptiDrive™ Eco

ODV-3-260090-3012-MN

$1,005.84 USD
$1,005.84 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 10.8 A
Supply Fuse or MCB (Type B) 16 A

Output Ratings

Motor Output Rating 5.5 kW (7.5 HP)
Output Voltage 0 – Supply Voltage
Output Current 9 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 2
Height 221 mm (8.7 in)
Width 110 mm (4.33 in)
Depth 185 mm (7.28 in)
Weight 1.8 kg (3.97 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 265 mm (10.43 in)
Width 145 mm (5.71 in)
Depth 230 mm (9.06 in)
Weight 1.9 kg (4.19 lbs)
