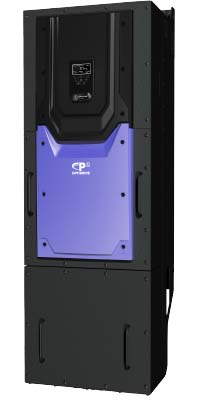

ODP-2-84300-3HF4N-MN OptiDrive™ P2, Performance

ODP-2-84300-3HF4N-MN OptiDrive™ P2, Performance

ODP-2-84300-3HF4N-MN

$24,240.48 USD
$24,240.48 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 370 A
Supply Fuse or MCB (Type B) 500 A

Output Ratings

Motor Output Rating 200 kW (300 HP)
Output Voltage 0 – Supply Voltage
Output Current 370 A

Cable Information

Max Supply Cable Size 240 mm² (0.37 sq in)
Max Motor Cable Size 240 mm² (0.37 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor Internal
Enclosure IP55
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 8
Height 1334 mm (52.52 in)
Width 444 mm (17.48 in)
Depth 423 mm (16.65 in)
Weight 144 kg (317.47 lbs)
Fixings 4 x M12

Packaged Dimensions

Height 980 mm (38.58 in)
Width 610 mm (24.02 in)
Depth 1040 mm (40.94 in)
Weight 165 kg (363.76 lbs)
