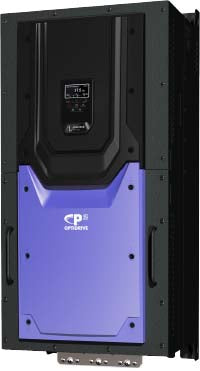

ODP-2-84300-3HF42-MN OptiDrive™ P2, Performance

ODP-2-84300-3HF42-MN OptiDrive™ P2, Performance

ODP-2-84300-3HF42-MN

$18,480.00 USD
$18,480.00 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 370 A
Supply Fuse or MCB (Type B) 500 A

Output Ratings

Motor Output Rating 200 kW (300 HP)
Output Voltage 0 – Supply Voltage
Output Current 370 A

Cable Information

Max Supply Cable Size 240 mm² (0.37 sq in)
Max Motor Cable Size 240 mm² (0.37 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 8
Height 974 mm (38.35 in)
Width 444 mm (17.48 in)
Depth 423 mm (16.65 in)
Weight 124.5 kg (274.48 lbs)
Fixings 4 x M12

Packaged Dimensions

Height 660 mm (25.98 in)
Width 620 mm (24.41 in)
Depth 1020 mm (40.16 in)
Weight 144 kg (317.47 lbs)
View full details
