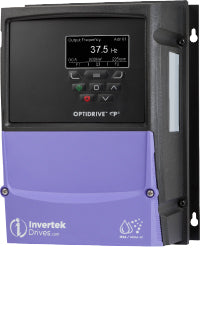

ODP-2-26020-3H04A-MN OptiDrive™ P2, Performance

ODP-2-26020-3H04A-MN OptiDrive™ P2, Performance

ODP-2-26020-3H04A-MN

$926.64 USD
$926.64 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 3.7 A
Supply Fuse or MCB (Type B) 10 A

Output Ratings

Motor Output Rating 1.5 kW (2 HP)
Output Voltage 0 – Supply Voltage
Output Current 3.1 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC
Brake Transistor Internal
Enclosure IP66 Non Switched Outdoor
Display TFT Display
PCB Coating Standard

Drive Dimensions

Size 2
Height 257 mm (10.12 in)
Width 188 mm (7.4 in)
Depth 172 mm (6.77 in)
Weight 3.5 kg (7.72 lbs)
Fixings 4 x M4

Packaged Dimensions

Height 215 mm (8.46 in)
Width 235 mm (9.25 in)
Depth 375 mm (14.76 in)
Weight 4.2 kg (9.26 lbs)
