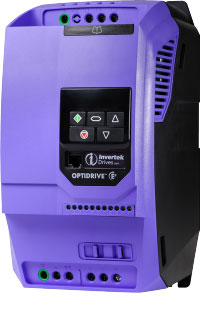

ODE-3-320153-1042 OptiDrive™ E3, Economy

ODE-3-320153-1042 OptiDrive™ E3, Economy

ODE-3-320153-1042

$797.28 USD
$797.28 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 1
Supply Current Continuous 29.2 A
Supply Fuse or MCB (Type B) 40 A

Output Ratings

Motor Output Rating 4 kW (5 HP)
Output Voltage 0 – Supply Voltage
Output Current 15.3 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter No Internal EMC Filter
Brake Transistor Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 3
Height 261 mm (10.28 in)
Width 131 mm (5.16 in)
Depth 175 mm (6.89 in)
Weight 3.2 kg (7.05 lbs)
Fixings 4 x M5

Packaged Dimensions

Height 254 mm (10 in)
Width 162 mm (6.38 in)
Depth 315 mm (12.4 in)
Weight 3.5 kg (7.72 lbs)
