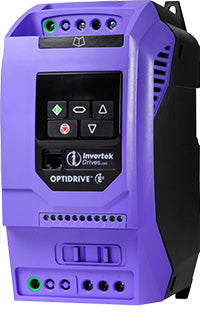

ODE-3-220105-3F42 OptiDrive™ E3, Economy

ODE-3-220105-3F42 OptiDrive™ E3, Economy

ODE-3-220105-3F42

$464.64 USD
$464.64 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 12.1 A
Supply Fuse or MCB (Type B) 16 A

Output Ratings

Motor Output Rating 2.2 kW (3 HP)
Output Voltage 0 – Supply Voltage
Output Current 10.5 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC Filter
Brake Transistor Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 2
Height 221 mm (8.7 in)
Width 110 mm (4.33 in)
Depth 150 mm (5.91 in)
Weight 1.7 kg (3.75 lbs)
Fixings 4 x M5

Packaged Dimensions

Height 234 mm (9.21 in)
Width 144 mm (5.67 in)
Depth 260 mm (10.24 in)
Weight 1.9 kg (4.19 lbs)
View full details

Resources for OptiDrive™ E3
