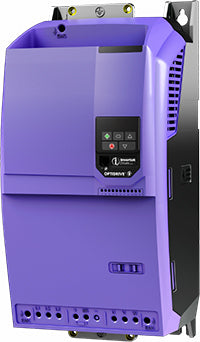

ODE-3-520720-3F42 OptiDrive™ E3, Economy

ODE-3-520720-3F42 OptiDrive™ E3, Economy

ODE-3-520720-3F42

$2,112.00 USD
$2,112.00 USD
Sale Sold out
Shipping calculated at checkout.

Input Ratings

Supply Voltage 200-240 V
Input Phases 3
Supply Current Continuous 67.6 A
Supply Fuse or MCB (Type B) 100 A

Output Ratings

Motor Output Rating 18.5 kW (25 HP)
Output Voltage 0 – Supply Voltage
Output Current 72 A

Cable Information

Max Supply Cable Size 35 mm² (0.05 sq in)
Max Motor Cable Size 35 mm² (0.05 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC Filter
Brake Transistor Internal Brake Transistor
Enclosure IP20
Display LED

Drive Dimensions

Size 5
Height 486 mm (19.13 in)
Width 222 mm (8.74 in)
Depth 226 mm (8.9 in)
Weight 18.1 kg (39.9 lbs)
Fixings 4 x M8

Packaged Dimensions

Height 356 mm (14.02 in)
Width 336 mm (13.23 in)
Depth 658 mm (25.91 in)
Weight 19 kg (41.89 lbs)
